Good navigation is not just about avoiding mistakes. It helps you make better decisions, stay on course, and understand what the ground is going to ask of you before you get there. GPS is handy, but it should not be the only thing you rely on. Batteries run flat, the signal disappears, and screens do not always tell the full story. A paper map 🗺️ and compass 🧭 give you a bigger, clearer picture.
You do not need to be an expert to get started. You just need a few basics, a bit of practice, and the habit of checking where you are before you need to.
How To Read A Map
A map can look a bit busy at first, but once you know what you are looking at, it is much less intimidating. Start with the key, then check the scale, then look at the symbols and contour lines. That is where the important stuff lives. The scale tells you how far things really are. The symbols show paths, water, woodland, roads, and buildings. Once those basics make sense, the rest becomes much easier to follow.
You really need to:
- Get to know the symbols, scales, and the map’s legend (key). It’s like learning a new language, but much easier.
- Practice orientating your map so it matches the landscape you see around you.
- Try out grid references to pinpointexactly where you are or where you want to be.
- Understand how to use a compass alongside your map.
Contour lines show the shape of the land. If they are close together, the ground is steep. If they are spread out, the slope is gentler.
That is one of the most useful things to learn on a map. It helps you spot hills, valleys, ridges, and sudden changes in height before you get there. After a while, you will start seeing the landscape in the lines.
This is where map reading really starts to click. You look at the map, look at the ground, and compare the two. Trees, streams, paths, fences, bends in rivers, and changes in height all help you work out exactly where you are.
It is worth doing this often, not just when you feel unsure. If the map and the landscape do not seem to match, stop and sort it out early. That is much easier than trying to fix a bigger mistake later.
A good route plan breaks a walk into smaller, more manageable bits. Instead of thinking about the whole day at once, you move from one checkpoint to the next. That makes everything feel simpler.
At each point, ask yourself: Where am I now? What is my next landmark? How far is it? Which direction am I heading? How will I know when I have reached it? Those little checks make a big difference.
Cracking the Code: Map Symbols and Legends
Maps use symbols instead of words to show features such as roads, footpaths, rivers, woods, and buildings. The legend, or key, explains what each symbol means, so it is worth checking before you set off and keeping it in mind as you go.📍
Common symbols include:
- Blue lines for rivers and streams
- Green areas for forests or woods
- Black lines for roads and paths
- Look out for icons showing campsites, viewpoints, car parks, and more.
Pro Tip: Ordnance Survey (OS) maps are the gold standard for UK outdoor adventures, offering a comprehensive legend and detailed information for walkers and explorers.
Decoding Map Scales and Types
Map scale tells you how much the real world is reduced to fit on the map. The most popular OS map scales are:
1:25,000 (Explorer Series): Highly detailed, perfect for walking, hiking, and off-path adventures.
1:50,000 (Landranger Series): Covers a larger area with less detail, ideal for cycling, running, or planning longer routes.
Choosing the right map depends on what you are doing. If you are heading into complex terrain or navigating away from established paths, a more detailed scale is usually the better choice. If you need a broader overview for a longer journey, a smaller-scale map can be more practical.
How to Set and Orientate a Map
Orientating your map means lining it up so the features on the page match what you can see on the ground. It is one of the most important navigation basics, because once the map is facing the right way, everything becomes much easier to understand. To orientate your map:
- Hold the map so the top points north.
- With a compass 🧭: Place it on the map, rotate the map until the red needle points to the top (north), aligning it with the north-south grid lines.
- Without a compass: Use the sun’s position (east in the morning, south at midday, west in the evening) as a rough guide to direction.
It helps you visualise your route, identify landmarks, and make confident decisions at junctions or when visibility is poor.
How to Use a Compass
A compass is your most reliable tool for finding direction and setting bearings, especially in unfamiliar or featureless terrain.
Key compass skills 🧭
- Setting the map: Use the compass needle to align your map to north.
- Taking a bearing: Place the compass on the map, align its edge with your intended route, rotate the housing to line up with grid north, then turn your body until the needle aligns with the orienting arrow.
- Walking on a bearing: Follow the direction of travel arrow on your compass, checking your progress regularly to stay on course.
Tip: Master both traditional and digital compasses, but always carry a physical compass as a backup for safety.

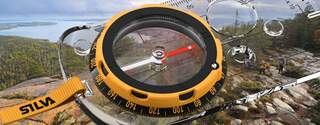

Silva 1-2-3 System
The Silva 1-2-3 System is a simple three-step method for using a baseplate compass with a map. Once you’ve learned it, you’ll always have a reliable way to plot and follow a route, no matter the weather, visibility, or tech problems.
Step 1: Place
Put the compass on the map so the edge runs from your current position to your destination. Make sure the direction-of-travel arrow points where you want to go.
Step 2: Rotate
Turn the compass housing until the north markings line up with the map’s north-south grid lines. This sets the bearing you need to follow.
Step 3: Go Lift the compass, hold it level, and turn your body until the red end of the needle lines up with the north arrow in the capsule. The direction-of-travel arrow now points to your destination, so you can pick a landmark and walk towards it
Grid References: Pinpointing Your Location
Grid references are a precise way to communicate or record exact locations on a map, using the blue grid lines printed on OS maps.
How to find a grid reference:
- First, read the number along the bottom (eastings).
- Then, read the number up the side (northings).
- Combine them for a four-figure (general area) or six-figure (precise point) reference. For example: 3311.
Practical use: Grid references are essential for emergencies, route planning, and sharing locations with others
Reading Contour Lines and Landforms
Contour lines show changes in elevation and the shape of the land, helping you understand hills, valleys, ridges, and slopes.
Key points:
- Close contour lines = steep slopes
- Wide contour lines = gentle slopes
- Concentric circles = hills or summits
- V-shaped contours = valleys (the point of the V usually indicates upstream)
Learn the terminology: Hill, summit, knoll, ridge, spur, valley, saddle, col, convex slope, concave slope. Practise identifying these features both on your map and in the landscape
Measuring Distance and Estimating Time
Want to know how far you’ve got to go? Use the map’s scale bar or a ruler to measure straight lines, or a piece of string for twisty paths.
For winding routes, lay the string along the path, then measure it against the scale.
To estimate time, use Naismith’s Rule: allow about an hour for every 5km (3 miles) of walking, plus an extra hour for every 600m (2,000 feet) you climb.
Tech vs. Traditional: Navigating in the Modern World
GPS devices and mobile navigation apps offer convenience and extra features like live tracking and route recording, but they should never replace traditional map and compass skills.
Best practice:
- Use GPS for confirmation and as a backup.
- Always carry a paper map and compass, and know how to use them.
- Download offline maps and bring a spare battery pack if you’re relying on tech.
Common Map Reading Mistakes
- Not lining up your map with the landscape
- Mixing up symbols or not checking the scale
- Relying too much on technology
- Ignoring contour lines
- Not planning ahead
FAQs
Map reading is the skill of understanding a map so you can work out where you are, where you are going, and what the ground is like between the two.
A 1:25,000 map shows more detail and is better for walking, while a 1:50,000 map covers a larger area with less detail.
A detailed topographic map, usually at 1:25,000, is the best choice for most walking and hiking routes.
Start with familiar routes, practise with friends, and use resources from Ordnance Survey and other reputable sources.
Set your map to north, then use the compass to take bearings and follow routes, checking your position regularly.
Stop, check your map and compass, retrace your steps if safe, and use grid references to identify your location. If needed, call for help and provide your grid reference.
Contour lines show the shape and height of the land. Close lines mean steep ground, and wider gaps mean gentler slopes.
A bearing is a direction measured in degrees, used to help you walk in the correct direction.
